MAXVAL BAST-ING SPINDLE WEDGE 30T

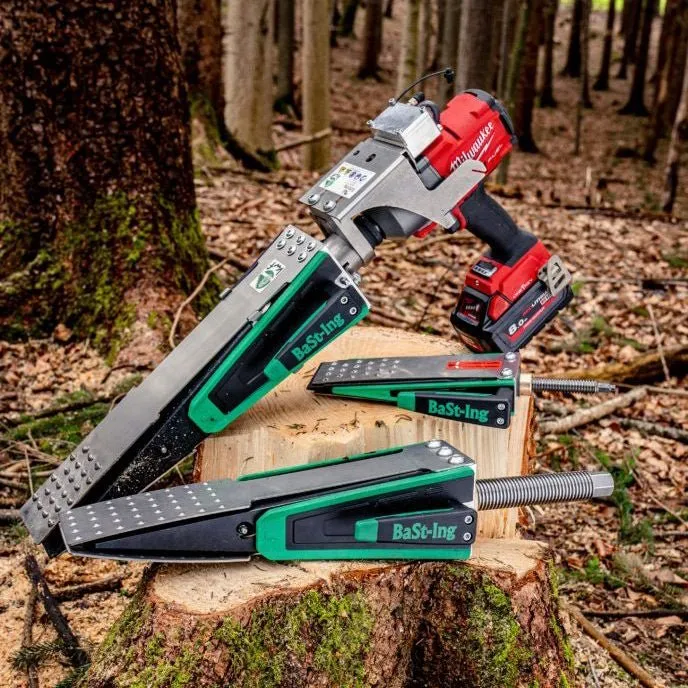

MaxVal – is the largest spindle wedge in the range and is specially designed for thick wood. The design of the MaxVal focuses on maximum lifting power and simple construction. The drive spindle is made of 32mm thick CrMo steel. The MaxVal is driven with a 24mm wrench size. The drive spindle is partially integrated in the MaxVal, which means that half of the spindle is protected in the wedge tip. The second, shorter half of the locker protrudes 140mm from the felling wedge.

TECHNICAL DATA AT A GLANCE:

• Lifting capacity: 30t
• Wedge angle: 14°
• Weight: 6.2kg
• Impact wrench from 1000Nm
• Maximum torque impact drive 2000Nm
• Overall Length: 520mm,Wedge Length 330mm, Wedge Width: 80mm, Total width: 130mm
• Lifting height: 80mm
• Width across flats: 24mm
• Spindle diameter: 32mm
• Spindle material: CrMo – steel – highly tempered
• Thread pitch: 6mm

  SUITABLE IMPACT WRENCH TYPES:

  • Makita DTW1002 & DTW1001 & Makita TW001G
  • Milwaukee ONFHIWF12 & ONEFHIWF34
  • Bosch GDS18V-1050H
  • DeWalt DCF899
